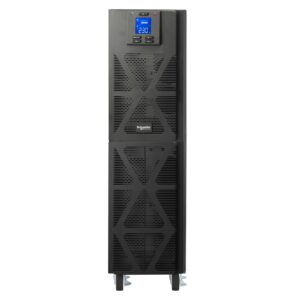

Easy UPS 1 Ph On-Line, 10kVA/10kW, Tower, 230V, 1x Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD

Easy UPS 1 Ph On-Line, 10kVA/10kW, Tower, 230V, 1x Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD

2 years repair or replace

SKU: SRVS10KI Category:

Description

Specifications

Overview
Presentation High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.
Lead time Usually in Stock
Main
Run time for load
Min-max: 1000-10000 W
2min 52s
Max. Capacity Used
information_stroke

100 %

Main Input Voltage 230 V
Product or component type Uninterruptible power supply (UPS)
Other Input Voltage 220 V
240 V
Main Output Voltage 230 V
Other Output Voltage 220 V
240 V
Rated power in W 10000 W
Rated power in VA 10000 VA
Output connector type Hard wire 3-wire (1P + N + E) 1
Provided equipment 1 USB cable
1 RS-232 configuration cable
user manual
Batteries & Runtime
Run Time View Runtime Graph
Efficiency View Efficiency Graph
Battery type Lead-acid battery
Battery voltage 192 V
Number of battery filled slots 0
Number of battery free slots 0
Battery recharge time 5 h
Battery life 3…5 year(s)
Battery charger power 235 W rated
General
Number of power module filled slots 0
Number of power module free slots 0
Redundant No
Physical
Colour Black (RAL 7010)
height 68.5 cm
Width 19 cm
Depth 44.7 cm
Net weight 65 kg
Mounting location Front
Mounting preference No preference
Mounting mode Not rack-mountable
USB compatible Yes
Mounting position Vertical
Input
Input voltage limits 110…300 V 60 % load
176…300 V full load
Number of input connectors 1 hard wire 3-wire (1P + N + E)
Network frequency 40…70 Hz auto sensing
Output
Maximum configurable power in VA 10000 VA
Maximum configurable power in W 10000 W
Output frequency 50/60 Hz +/- 3 Hz sync to mains
Harmonic distortion 1 %
UPS type Double conversion online
Wave type Sine wave
Efficiency 94 % (full load)
Additional information Configurable for 220 : 230 or 240 nominal output voltage
Bypass type Internal bypass (automatic and manual)
Crest factor 3 : 1



Additional information

Weight 65 kg
Dimensions 68.5 × 19 × 44.7 cm
Color

Black

Brand

Schneider
