APC Easy UPS On-Line, 6kVA/6kW, Rackmount 5U, 230V, Hard wire 3-wire(P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime, W/ rail kit
APC Easy UPS On-Line, 1000VA/800W, Rackmount 4U, 230V, 4x IEC C13 outlets, Intelligent Card Slot, LCD, Extended runtime, W/ rail kit

APC Easy UPS On-Line, 10kVA/10kW, Rackmount 5U, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime, W/ Rail Kit

0 out of 5
( There are no reviews yet. )

APC Easy UPS On-Line, 10kVA/10kW, Rackmount 5U, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime, W/ Rail Kit

2 years repair or replace

SKU: SRV10KRILRK Category:

Description

Specifications

Overview
Presentation High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.
Lead time Usually in Stock
Main
Run time for load
Min-max: 1000-10000 W
2min 32s
Max. Capacity Used
information_stroke

100 %
Main Input Voltage 230 V
Other Input Voltage 220 V
240 V
Main Output Voltage 230 V
Other Output Voltage 220 V
240 V
Rated power in W 10000 W
Rated power in VA 10000 VA
Output connector type Hard wire 3-wire (1P + N + E) 1
Number of rack unit 5U
Provided equipment 1 USB cable
1 RS-232 configuration cable
2 rack mounting brackets

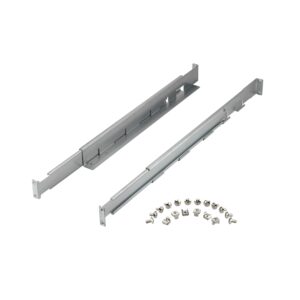

2 rack mounting support rails
1 external battery pack
1 battery cable
user manual
Batteries & Runtime
Run Time View Runtime Graph
Efficiency View Efficiency Graph
Battery type Lead-acid battery
Battery voltage 240 V
Number of battery filled slots 0
Number of battery free slots 0
Battery recharge time 5 h
Battery life 3…5 year(s)
Battery charger power 1170 W rated
General
Number of power module filled slots 0
Number of power module free slots 0
Redundant No
Physical
Colour Black (RAL 7010)
height 22 cm
Width 43.8 cm
Depth 61.5 cm
Net weight 78 kg
Mounting location Front
Mounting preference Lower
Mounting mode Rack-mounted
USB compatible Yes
Mounting position Horizontal
Input
Input voltage limits 110…300 V 60 % load
176…300 V full load
Number of input connectors 1 hard wire 3-wire (1P + N + E)
Network frequency 40…70 Hz auto sensing
Output
Maximum configurable power in VA 10000 VA
Maximum configurable power in W 10000 W
Output frequency 50/60 Hz +/- 3 Hz sync to mains
Harmonic distortion 1 %
UPS type Double conversion online
Wave type Sine wave
Efficiency 94 % (full load)
Additional information Configurable for 220 : 230 or 240 nominal output voltage
Bypass type Internal bypass (automatic and manual)
Crest factor 3 : 1
  • 10kVA/10kW double-conversion on-line pure sine wave 5U rackmount UPS
  • High operating efficiency in energy-saving ECO mode
  • Add up to 4 external battery packs (SRV240RLBP-9A) for extended runtime
  • Easy-to-read LCD interface for detailed and accurate information on UPS status
  • Environmental performance of the product

Additional information

Weight 78 kg
Dimensions 22 × 43.8 × 61.5 cm
Color

Black
Brand

APC





Reviews

There are no reviews yet.

Be the first to review “APC Easy UPS On-Line, 10kVA/10kW, Rackmount 5U, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime, W/ Rail Kit”
