APC Easy UPS On-Line, 10kVA/10kW, Rackmount 5U, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime, W/ Rail Kit
APC Easy UPS On-Line, 2000VA/1600W, Rackmount 4U, 230V, 4x IEC C13 outlets, Intelligent Card Slot, LCD, Extended runtime, W/ rail kit

APC Easy UPS On-Line, 1000VA/800W, Rackmount 4U, 230V, 4x IEC C13 outlets, Intelligent Card Slot, LCD, Extended runtime, W/ rail kit

0 out of 5
( There are no reviews yet. )

APC Easy UPS On-Line, 1000VA/800W, Rackmount 4U, 230V, 4x IEC C13 outlets, Intelligent Card Slot, LCD, Extended runtime, W/ rail kit

2 years repair or replace

SKU: SRV10KRILRK-1 Category:

Description

Specifications

Overview
Presentation High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.
Lead time Usually in Stock
Main
Run time for load
Min-max: 80-800 W
23min 43s
Max. Capacity Used
information_stroke

100 %
Main Input Voltage 230 V
Other Input Voltage 220 V
240 V
Main Output Voltage 230 V
Other Output Voltage 220 V
240 V
Rated power in W 800 W
Rated power in VA 1000 VA
Input Connection Type IEC 60320 C14
output connection type 4 IEC 60320 C13
Number of rack unit 4U
Number of cables 1
Provided equipment 1 IEC 60320 C13 to Schuko power cable
1 IEC 60320 C13 to C14 power cable
1 USB cable
1 RS-232 configuration cable
1 external battery pack
1 battery cable

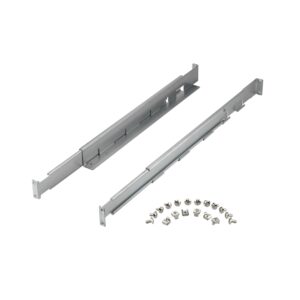

1 rack mounting brackets
user manual
Batteries & Runtime
Run Time View Runtime Graph
Efficiency View Efficiency Graph
Battery type Lead-acid battery
Battery voltage 36 V
Number of battery filled slots 0
Number of battery free slots 0
Battery recharge time 4.5 h
Battery life 3…5 year(s)
Battery charger power 175 W rated
General
Number of power module filled slots 0
Number of power module free slots 0
Redundant No
Physical
Colour Black (RAL 7010)
height 17.2 cm
Width 43.8 cm
Depth 41.2 cm
Net weight 27 kg
Mounting location Front
Mounting preference Lower
Mounting mode Rack-mounted
USB compatible No
Mounting position Horizontal
Input
Input voltage limits 110…285 V half load
160…280 V full load
Network frequency 40…70 Hz auto sensing
Output
Maximum configurable power in VA 1000 VA
Maximum configurable power in W 800 W
Output frequency 50/60 Hz +/- 3 Hz sync to mains
Harmonic distortion 3 %
UPS type Double conversion online
Wave type Sine wave
Efficiency 88 % (full load)
Additional information Configurable for 220 : 230 or 240 nominal output voltage
Bypass type Internal bypass (automatic and manual)
Crest factor 3 : 1

Additional information

Weight 27 kg
Dimensions 17.2 × 43.8 × 41.2 cm
Color

Black
Brand

APC
